About

The FOXBI’s ch_cpuinfo is shell script , which retrieve information about the CPU on a Synology DSM system. The script obtains a summary of the CPU information, including the processor type, number of cores, clock speed, code-name e.g. Haswell , Broadwell , Skylake , Kaby Lake etc.

How to Use

  1. Connect to DSM terminal via SSH with privileged permission.
1

sudo -i

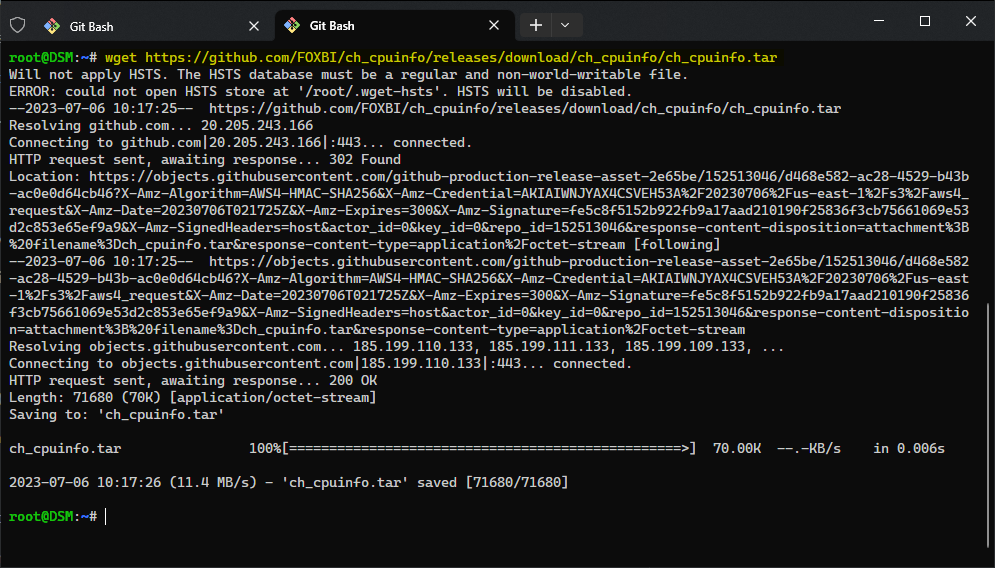

  1. Download the ch_cpuinfo tar file from GitHub
1

wget https://github.com/FOXBI/ch_cpuinfo/releases/download/ch_cpuinfo/ch_cpuinfo.tar

2023-07-06_101746

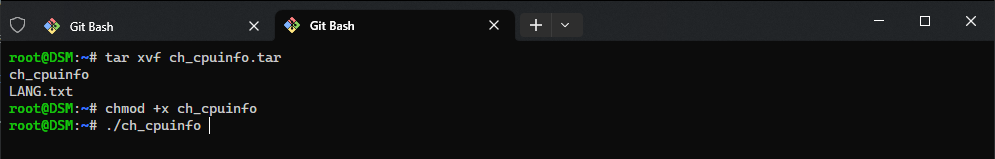

  1. Decompress the tar file and grant execute permission.
1

tar -xvf ch_cpuinfo.tar && chmod -x ch_cpuinfo

2023-07-06_101813

  1. Execute the Script
1

./ch_cpuinfo

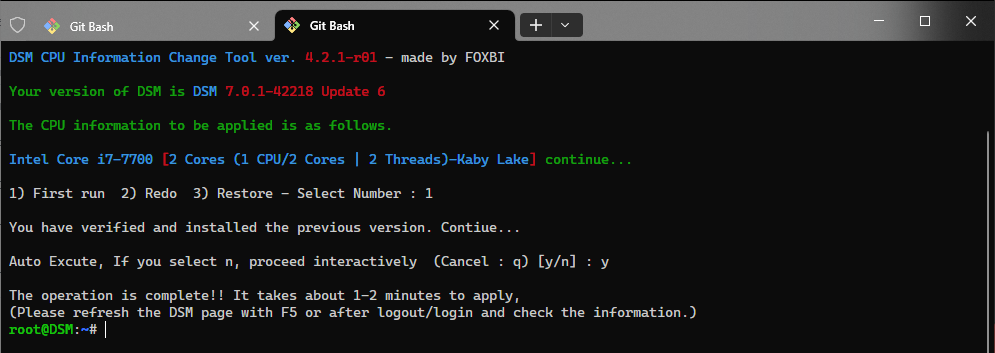

The script retrieves information; choose the options as needed.

2023-07-06_102014

  1. Re-login DSM to refresh the Info Center.

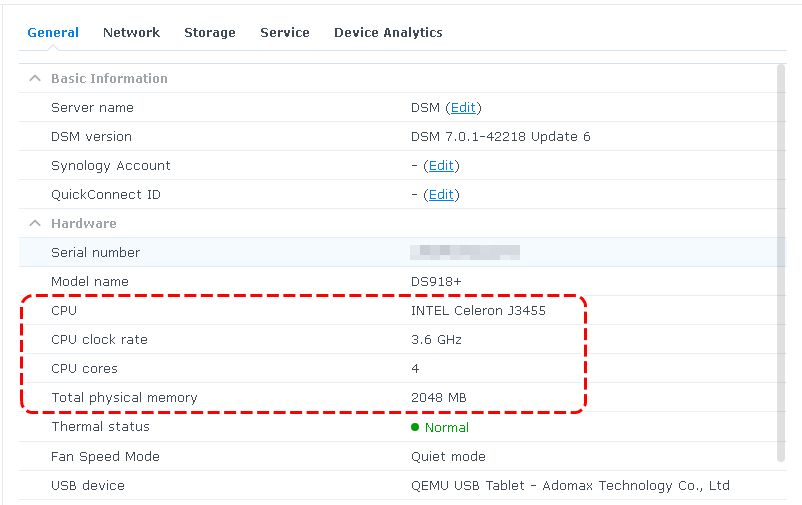

Before:

2023-07-06_101258

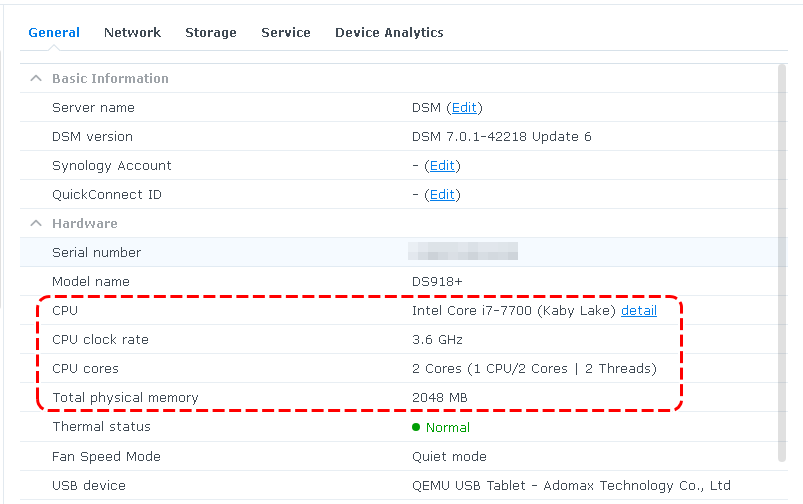

After:

2023-07-06_102124

Conclusion

This script can be useful for those who need to update CPU information on a Syonlogy DSM installed on a non-official machine with a different CPU type.
